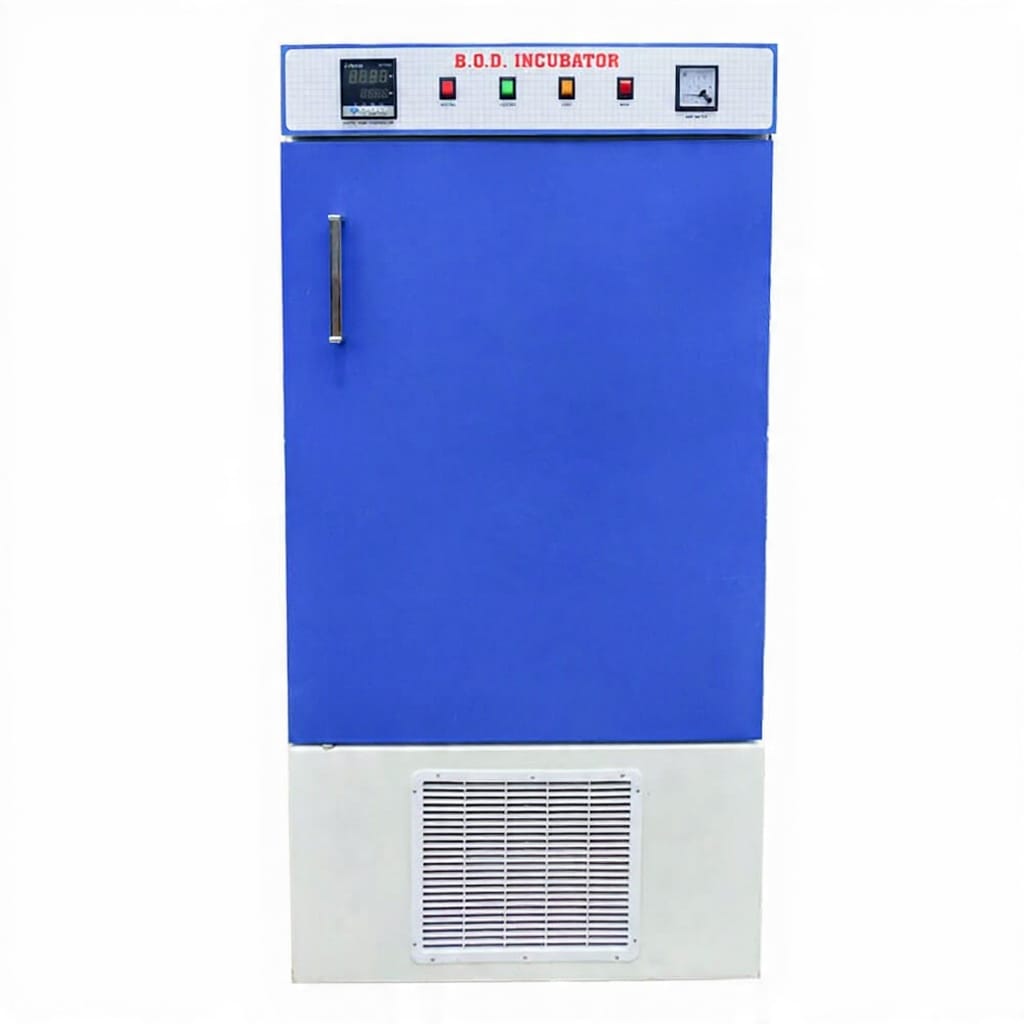

Overview
The BOD Incubator supplied by Curium Enterprises is designed to maintain stable low-temperature conditions for biological, microbiological, and quality control applications. It provides precise temperature regulation for incubation, culture storage, sample preservation, and environmental testing where consistent operating conditions are essential.
Featuring an insulated stainless steel chamber, efficient cooling system, and advanced digital temperature control, the BOD Incubator delivers dependable performance for laboratories requiring accurate and uniform temperature management. It is suitable for pharmaceutical laboratories, microbiology laboratories, research institutions, hospitals, food testing laboratories, and educational facilities.
Key Features
- Double-walled insulated construction for improved thermal stability
- Stainless Steel 304 inner chamber with mirror finish
- Powder-coated galvanized steel exterior
- High-density PUF insulation for reduced temperature loss
- Inner acrylic door with external metal door and magnetic gasket
- Hermetically sealed compressor for efficient cooling
- CFC-free refrigerant
- Energy-efficient air heating system
- Forced air circulation for uniform temperature distribution
- Microprocessor-based digital temperature controller
- Dual LED display for set and actual temperature
- PT100 Class A temperature sensor for accurate temperature monitoring
- Stainless steel rod shelves
- Interior illumination for improved sample visibility
Technical Specifications
Construction
- Double-walled construction
- Stainless Steel 304 inner chamber
- Mirror-finished interior
- Powder-coated galvanized steel exterior
- High-density PUF insulation
- Inner acrylic door with external insulated metal door
- Magnetic gasket and locking arrangement
Cooling & Heating System
- Hermetically sealed compressor
- CFC-free refrigerant
- Energy-efficient air heaters
- Forced air circulation system
Temperature Control
- Microprocessor-based Digital Temperature Controller
- Dual LED display for Set and Actual temperature
- PT100 Class A temperature sensor
Performance
| Parameter | Specification |
|---|---|
| Temperature Range | 5°C to 60°C |
| Temperature Resolution | 0.1°C |
| Control Accuracy | ±0.5°C |
Available Models
| Capacity | Chamber Size (cm) | Exterior Dimensions (cm) | Weight (kg) | Shelves | Power Rating |
|---|---|---|---|---|---|
| 90 L (3 Cu. Ft.) | 45 × 40 × 50 | 60 × 85 × 105 | 65 | 2 | 1000 W |
| 170 L (6 Cu. Ft.) | 50 × 50 × 70 | 65 × 95 × 125 | 80 | 3 | 1250 W |
| 330 L (12 Cu. Ft.) | 60 × 60 × 90 | 75 × 105 × 145 | 110 | 4 | 1500 W |
| 450 L (16 Cu. Ft.) | 60 × 60 × 125 | 75 × 105 × 180 | 150 | 5 | 2000 W |
| 600 L (21 Cu. Ft.) | 60 × 80 × 125 | 75 × 125 × 180 | 200 | 5 | 2500 W |
Optional Accessories
- Interior fluorescent illumination
- Cyclic digital timer
- Safety temperature controller
- Single-channel data logger with printer output
- RS-485 communication with 21 CFR Part 11 compatible software
Applications
The BOD Incubator is suitable for a wide range of laboratory applications, including:
- Microbiological incubation
- Bacterial culture storage
- BOD analysis
- Seed germination studies
- Environmental testing
- Pharmaceutical quality control
- Food and beverage testing
- Biotechnology research
- Clinical laboratories
- Research and development laboratories
- Educational institutions
- Agricultural laboratories
Frequently Asked Questions
What is a BOD Incubator used for?
A BOD Incubator is used to maintain controlled low-temperature conditions for biological oxygen demand (BOD) testing, microbiological culture growth, sample storage, seed germination, and other laboratory applications requiring stable environmental conditions.
What is the temperature range of this incubator?
The BOD Incubator operates within a temperature range of 5°C to 60°C, making it suitable for a variety of biological and laboratory testing applications.
How does the BOD Incubator maintain temperature uniformity?
The incubator combines a hermetically sealed cooling system with forced air circulation to ensure uniform temperature distribution throughout the chamber.
Which industries commonly use BOD Incubators?
BOD Incubators are widely used in pharmaceutical laboratories, microbiology laboratories, food testing facilities, environmental laboratories, hospitals, research institutions, biotechnology companies, agricultural laboratories, and educational institutions.
