Overview

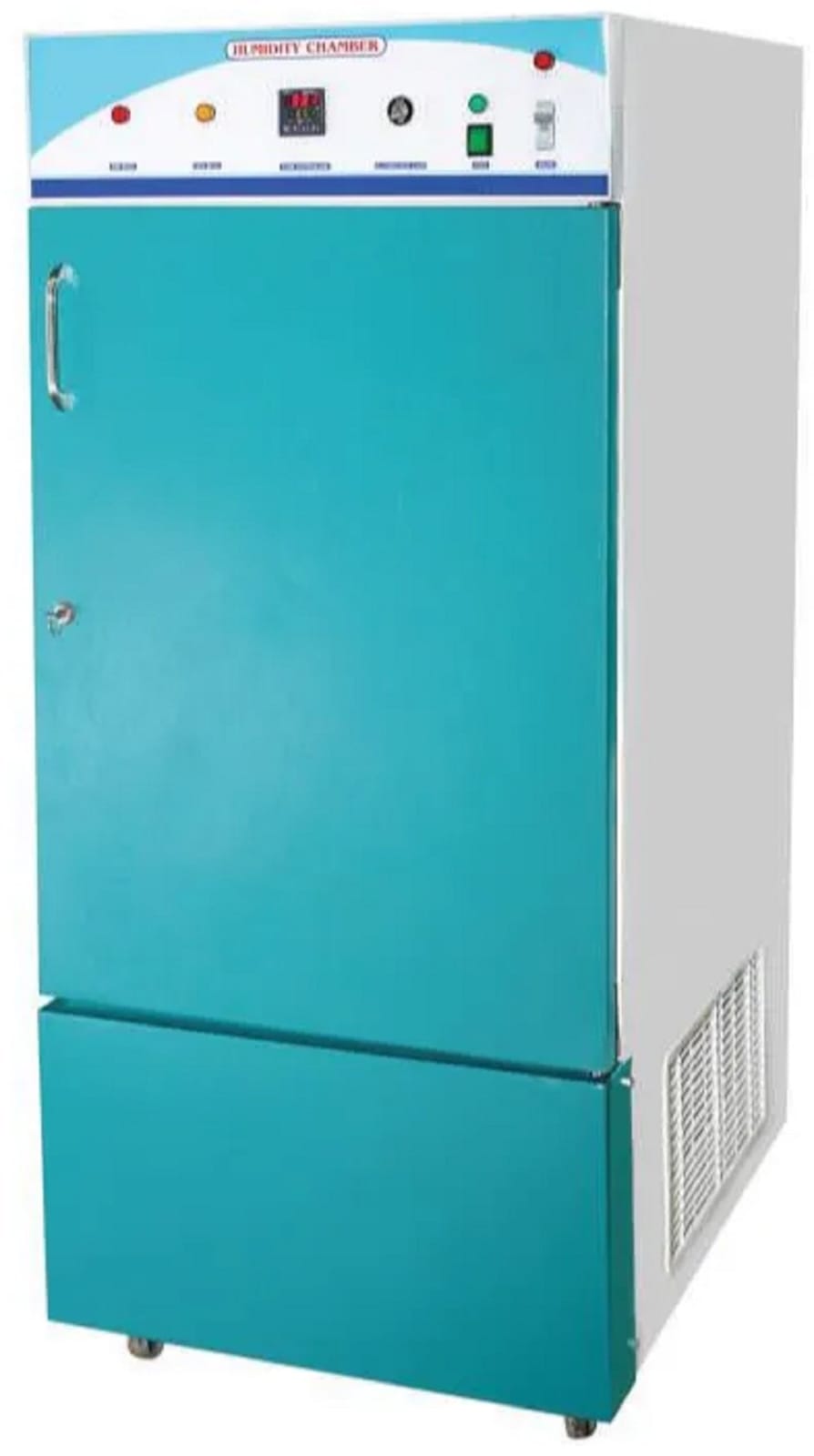

The Humidity Chamber supplied by Curium Enterprises is designed to provide precise control of temperature and humidity for stability testing, environmental simulation, and quality control applications. It creates controlled testing conditions to evaluate the performance, durability, and shelf life of products under varying environmental conditions.
Built with a Stainless Steel 304 chamber and advanced PID control technology, the chamber delivers reliable temperature and humidity regulation for laboratories and industrial testing facilities. It is suitable for pharmaceutical, biotechnology, electronics, research, food testing, and quality assurance applications.
Key Features
- Double-walled insulated construction
- Stainless Steel 304 mirror-finished inner chamber
- Powder-coated galvanized steel exterior
- High-density PUF insulation
- Double-layer toughened glass viewing window
- Inner acrylic door with magnetic gasket
- Hermetically sealed compressor with CFC-free refrigerant
- Digital PID temperature and humidity controller
- Forced air circulation for uniform chamber conditions
- PT100 temperature sensor
- Digital temperature and humidity display
- Adjustable stainless steel shelves
- Heavy-duty immersion heating system
- Built-in safety protection for temperature, humidity, and low water level
Technical Specifications
Construction
- Double-walled construction
- Stainless Steel 304 mirror-finished chamber
- Powder-coated galvanized steel exterior
- PUF insulation
- Double-layer toughened glass viewing window
- Inner acrylic door with magnetic gasket
Control System
- Digital PID Controller
- Digital temperature & humidity sensor
- LED display for set and actual values
Performance
| Parameter | Specification |
|---|---|
| Temperature Range | 10°C to 60°C |
| Humidity Range | 40% RH to 95% RH |
| Temperature Resolution | 0.1°C |
| Control Accuracy | ±0.5°C |
| Power Supply | 230V AC, 50 Hz, Single Phase |
Standard Configuration
- Stainless Steel 304 chamber
- 3 Adjustable shelves
- Heavy-duty immersion heaters
- Forced air circulation system
- Interior illumination
Available Capacities
- 100 Litres
- 200 Litres
- 300 Litres
- 500 Litres
- 1000 Litres
Custom sizes are available based on application requirements.
Optional Accessories
- Safety temperature controller
- Single-channel data logger with printer output
- RS-485 communication with 21 CFR Part 11 compatible software
- 7-inch HMI Touch Screen Display
Applications
The Humidity Chamber is suitable for:
- Stability testing
- Pharmaceutical laboratories
- Biotechnology laboratories
- Research laboratories
- Food and beverage testing
- Electronics testing
- Environmental testing
- Quality control laboratories
- Packaging validation
- Material testing
- Educational institutions
Frequently Asked Questions
What is a Humidity Chamber used for?
A Humidity Chamber is used to maintain controlled temperature and humidity conditions for stability studies, environmental testing, and product quality evaluation.
What is the humidity range?
The chamber operates within a humidity range of 40% RH to 95% RH.
Which industries use Humidity Chambers?
Humidity Chambers are widely used in pharmaceutical, biotechnology, electronics, food testing, research, environmental, and industrial quality control laboratories.
Can the chamber be supplied in different capacities?
Yes. Curium Enterprises supplies Humidity Chambers in multiple capacities and can also provide customized chamber sizes based on laboratory requirements.
